• There is a good chance that if your proposed device is not on this list of supported models, then it will not support Google Mobile Services (GMS), mSupply Mobile and/or the mobile device management software used to remotely manage the device.
• Even if it is on this list, please make sure the model has been validated by Sustainable Solutions before procuring any significant quantities of the device. Please contact Sustainable Solutions on support@msupply.org.nz to see which models have been validated so far.

• mSupply may be able to work on older versions of Android, but, for ease of management, Android 6 is the lowest acceptable version. Enrollment and management is even less error prone with Android 9+.
• Android 9 was released in August 6, 2018. Why would you be installing hardware that is already several years closer to it's end of service life?

• Minimum display size: 9.8 inches (measured diagonally)
• Minimum display resolution: 768 × 1024 pixels
• Android Version: 6.0

But, if the operator's eyesight may be poor, or you will ever be wanting to monitor a fridge at the facility for very little extra cost, consider the…

If mSupply Vaccine or mSupply ColdChain are to be used on the device at any point, the following are required minimum specifications:

• Minimum display size: 10.1 inch (measured diagonally)
• Minimum display resolution: 800 x 1280 pixels
• Android Version: 8.1

The device must also be compatible with MDM (Mobile Device Management) software and support google services. Please contact Sustainable Solutions or mSupply Foundation for details.

These recommended specifications will allow mSupply Mobile to operate well on the device.

• 1.5 Gb RAM
• Quad-core 1.3 GHz

The most challenging aspect of any remote data recording solution is management of the internet connection. It may be worth procuring devices that are mobile data enabled (3G minimum), at least to allow future flexibility. But that doesn't answer the harder questions:

• Who is responsible for keeping the device connected?
• Who pays for it?
• What happens when the bill isn't paid?
• What happens when a generous data cap is exceeded and the internet connection is down? (Somebody may have removed the SIM from the device and placed it in another device…)

Before using mSupply Mobile, the mSupply central server needs to be configured for it - refer to the mSupply User Guide for details.

You can download the latest version of mSupply Mobile from GitHub here

After the mSupply Mobile is installed on your tablet and you've started it, you need to enter the 'site' credentials (user name and password) and the URL for the mSupply server that will hold the data generated by the tablet.

After the device has synced to the central server you will see the login screen:

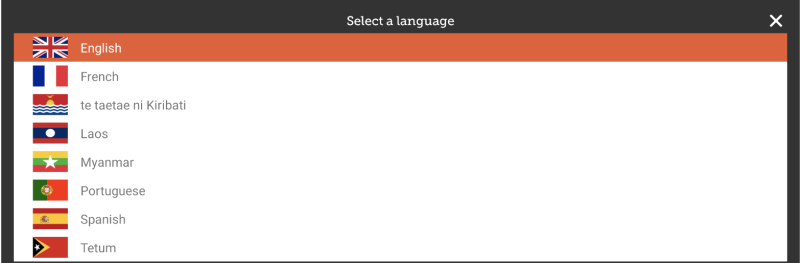

• The first thing to do is to choose your preferred language by clicking Language at the bottom left of the screen. For example, if your first language is Tetum, then you're in luck! - see below.

Once you have selected the language of your choice, enter the credentials (user name and password) for the store user and tap Login

This brings us to the main screen. We will be returning to the main screen a lot as we use mSupply Mobile, so it's important to understand the main functions. Let's go through them one by one.

Icon badges (orange circle with a number) indicate there are unfinalised transactions requiring attention. Click a badge for a description. Badges will automatically disappear when there are no unfinalised transactions remaining.

A link on the top right of the screen shows the Sync Status.

Clicking this link will take you to a page where you can choose to do a manual sync if you want to re-sync in-between the automatic syncs.

You can close this page by clicking the cross on the top right.

Users with the appropriate permissions can access the mobile Settings on the bottom right of the screen.

To log out, click the Log Out button on the bottom left of the screen.

The Customers area is for all the stock that goes OUT of your facility. Customers can be other facilities you supply, doctors and nurses doing outreach tours, or individual patients.

The Customer Invoices button shows a list of orders sent TO your customers and allows you to create new ones.

The Customer Requisitions button shows a list of orders placed BY customers requesting stock from your store.

The Suppliers area shows orders that you have placed and received for your own stock. Usually, you will only have ONE supplier (a medical store or other healthcare facility) and this will be pre-programmed for you.

The Supplier Invoices button shows a list of orders you have received or are waiting to receive.

The Supplier Requisitions button allows you to place an order and shows a list of orders you have already placed.

The Stock section is used to manage the stock in your store.

The Current Stock button allows you to easily see how much stock you have on hand (“How many paracetamol tablets do I have?”), search for an individual item, or check expiry dates.

The Stocktakes button allows you to do a stocktake on all items or a small selection of items and shows you a list of all previous stocktakes. You can also use this area to update the stock levels of an item when you realise there is a mistake.

And here is the main screen in Tetum!
